DM2500 6GT+2GC. IP Router



DM2500 6GT+2GC

IP Router

DM2500 Routers are the ideal solution for Service Providers delivering Enterprise Internet Access or VPN Services at customer premises. The DM2500 products are 1U high compact devices in a robust metallic enclosure. Offer an integrated universal AC/DC power supply with automatic selection and optional redundancy available using an external power supply adapter. Up to two devices can be installed side-by-side in a 19” rack when using MA-01 tray.

Characteristics

• 6 dedicated ports 10/100/1000Base-T (RJ45)
• Up to 2 ports 1000Base-X or 10/100/1000Base-T (SFP/RJ45 Combo)
• Compact metallic desktop enclosure with fanless version
• Embedded AC/DC full-range power supply with automatic selection
• 12VDC input using external AC adapter for redundancy (optional)



High Performance Packet Forwarding

The packet forwarding is performed using advanced hardware acceleration mechanisms, allowing the service provider to use DM2500 products in the most demanding applications combining complex routing protocols and advanced remote management capabilities to deliver value-added services.



Management

The products offer a robust Command Line Interface (CLI) with interactive help which is accessible through SSHv2, Telnet or locally through RS-232 console port. DM2500 is also managed and monitored by DmView or other third party management systems through SNMP v2c or v3.

Rollback and commit operations, Remote Syslog, NTP, DHCP and TACACS are available to ease the configuration, management and remote troubleshooting of the devices.



Routing Protocols

Besides high-speed packet forwarding and static routing the product is capable of establishing dynamic routing sessions with remote nodes using RIP, OSPF or BGP protocols. Authentication, prefix lists and route maps are also supported. Comprehensive table sizes are offered to fit typical access scenarios.



Tunneling

DM2500 products implement VLAN tags and GRE tunnels, allowing the service provider to establish traffic isolation and make intelligent use of existing network infrastructure.



NAT

Network Address Translation mechanism in several modes is fully supported to allow a clear separation between public and private networks, also saving IP resources.



Security

Access Control Lists configuration allows the service provider to permit or deny specific traffic patterns based on source/destination addresses, protocol type, ports and so on.



QoS

DM2500 offers flexible QoS mechanisms which implement traffic limiters and shapers as well as classification and assignment to queues. QoS features enforce the proper prioritization and differentiation of data, video and voice traffic.

Read More

DM4611 4GPON. Standalone GPON OLT



DM4611 4GPON

Standalone GPON OLT

The DM461x line has models of OLTs GPON for the most varied FTTx applications. The Datacom OLTs Portfolio includes models with 4, 8 and 16 PON ports, in addition to a variety of 1GE and 10GE interface options. All models support 1:128 split ratio, totaling capacities ranging from 512 to 2048 clients per OLT.

The OLT DM4611 4GPON + 2GT + 2XS is the ideal model for applications where there is low population density, that is, condominiums and small neighborhoods.

With its optimized number of ports and desktop installation option, this equipment brings versatility to service provider applications.

All Datacom OLTs are compliant with the ITU-T G.984 and ITU-T.988 standard. Each GPON link supports 2.488 Gbit/s downstream and 1.244 Gbit/s upstream rates and offers dynamic bandwidth allocation (DBA).

The configuration of the ONUs of the network is carried out remotely by the OLTs through the OMCI protocol according to the ITU-T standards. Even FXS ports to provide VoIP services to customers can be configured this way.

Being able to use 4094 VLANs defined in the IEEE 802.1Q standard simultaneously, in addition to offering Q-in-Q and VLAN translate functionalities, allowing double TAG, addition (Q-in-Q), removal or replacement of VLANs, the DM461x line serves one wide range of applications and needs for GPON network concentration and interconnection with Metro Ethernet networks.

The prioritization of traffic and services at different levels is achieved with QoS (Quality of Service) functionalities, such as traffic classification, SP and WFQ scaling, DSCP to P-bit (PCP) mapping, among others.

The Spanning Tree (STP) and Rapid Spanning Tree (RSTP) protocols and ring operation via the EAPS or ERPS protocol are supported, ensuring the protection of Ethernet uplinks. In addition, the Link Aggregation feature (LAG / LACP) allows for quick uplink extensions.

Through the IGMPv2/v3 protocols, multicast traffic is distributed to all customers through a single instance of each flow, enabling the provision of video and IPTV services.

The entire line of Datacom OLTs is based on the DmOS operating system, allowing management via a command-line interface (CLI) accessible through SSHv2, Telnet and RS-232 Console. SNMP v1, v2c and v3 agents and an XML interface based on the NETCONF standard are also available. DmOS also allows commit and rollback operations, use of user authentication via RADIUS and TACACS, local and remote Syslog, facilitating equipment configuration, management and troubleshooting.



Characteristics

• 1RU - Desktop or rack option 19"
• Support up to 512 subscribers on 4 GPON ports
• 2-Port 1GE and 2-Port 10GE Uplink
• AC/DC Power + 12Vdc Redundancy
• Laser classes B+, C+ and C++

GPON

• GPON Laser Class B+, C+ or C++
• Maximum range 60km
• AES (Advanced Encryption Standard) 128 bits downstream
• DBA (Dynamic Bandwidth Allocation) and SBA (Static Bandwidth Allocation)
• FEC (Forward Error Correction) in the upstream and downstream direction
• Activation of ONU by serial number, password and serial number + password
• Remote firmware update of ONUs
• Support for pre-provisioning of ONUs
• Automatic discovery of ONUs
• Self-provisioning of ONUs, including application of profiles for router ONUs
• hairpin turn
• UN rogue isolation
• Support for N:1, 1:1 and TLS services
• isolation of users
• DHCP option 82
• PPPoE Intermediate Agent
• Static Access List IPv4
• Remote provisioning of FXS ports in the UN via OMCI
• UN traffic monitoring
• GPON link monitoring

SWITCHING

• High L2 switching capacity - Wirespeed non-blocking
• RSTP, EAPS and LAG / LACP
• Multicast - IGMP
• Auto-negotiation setup by interface
• Q-in-Q selective VLAN dual mode

Read More

DM4610 4GPON. Standalone GPON OLT



DM4610 4GPON

Standalone GPON OLT

GPON (Gigabit Passive Optical Network) is a solution for optical access networks, offering high speed, cost-effective broadband applications and Triple Play services (voice, video and data). This technology allows sharing fiber optics among customers, reducing cost and maximizing the use of bandwidth.

Datacom has a range of GPON products that enables complete solutions of any size and cost-effective to provide FTTx services. The GPON product line is compliant with ITU-T G.984 and ITU-T G.988. Each GPON link supports downstream rates of 2.488 Gbit/s and upstream rates of 1.244 Gbit/s and offers dynamic bandwidth allocation (DBA).

The DM4610 OLT 4GPON is a compact and economical 1U solution for providing FTTx services. It supports 4 x GPON, 4 x 1GE optical SFP and 2 x 10GE optical using SFP+ connectors. This model supports 512 subscribers (ONU / ONT) whose network configurations are made remotely via the OMCI protocol in accordance with ITU-T standards. The DM4610 can remotely configure the main parameters of the ONU / ONT DM984-420 and DM984-422 (PPPoE, Fixed IP, DHCP, Bridge and WLAN).

Supports AC or DC power using independent, redundant, and hot-swappable power supplies. Offers hot-swappable FAN module.

Characteristics

• 1U chassis for 19" rack installation
• 4 GPON ports (SFP - SC / PC)
• 2 ports 10GBase-X (SFP+)
• 4 ports 100Base-FX / 1000Base-X (SFP)
• AC power (100Vac to 240Vac) or DC (-36Vdc to -72Vdc)
• Redundant and hot-swappable power and ventilation modules
• Operating temperature: 0 ° C to 65 ° C



GPON

• GPON Laser Class B+ and C+
• Maximum range 60km
• AES (Advanced Encryption Standard) 128 bits
• DBA (Dynamic Bandwidth Allocation)
• FEC (Forward Error Correction) in the downstream and upstream directions
• ONU activation by serial number, password and serial number + password
• Remote ONU firmware update
• Pre-provisioning support for ONUs
• Automatic discovery and auto-provisioning of ONUs
• Hairpin Turn – L2 communication between ONUs directly at OLT
• Support for N: 1, 1: 1 and TLS services
• User Isolation
• DHCP option 82
• PPPoE Intermediate Agent
• Static Access List IPv4



Safety

• Remote and local syslog
• Access authentication via RADIUS or TACACS



Management

• In-band and out-of-band IPv4
• Operations commit and rollback support
• Command line interface (CLI) via SSHv2, Telnet, and RS-232 Console
• Digital diagnostics according to SFF 8472
• Firmware rollback
• Inventory information
• SNMPv1, v2c, and v3
• Configuration support via XML (NETCONF)
• Supports storage of up to 2 firmware



Switching

• Setting up auto-negotiation by interface
• Auto MDI / MDIX
• Duplex Configuration by Ethernet interface
• Support Jumbo Frames up to 9000 bytes (Ethernet interface) and 2040 bytes (GPON interface)
• Configuration of up to 4094 VLANs

Read More

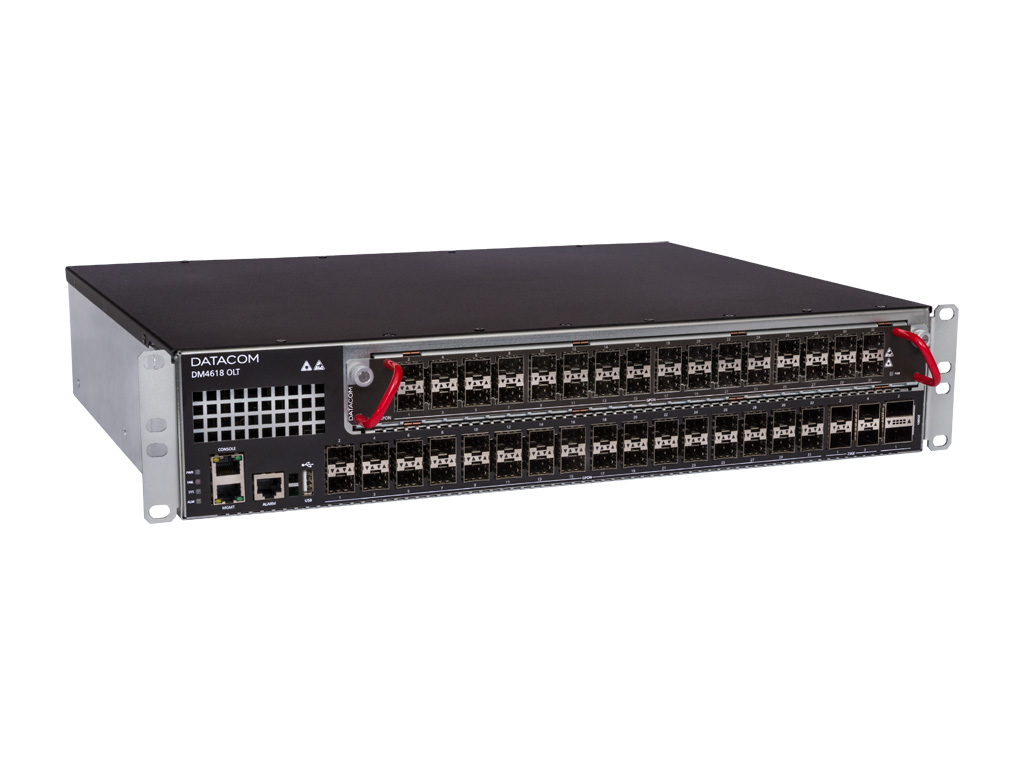

DM4618. OLT – Optical Line Terminator



DM4618

OLT – Optical Line Terminator

GPON (Gigabit Passive Optical Network) is a solution for optical access, offering high speed and great cost benefit for broadband applications and Triple Play services (voice, video and data). This technology allows the sharing of optical fiber between customers, reducing cost and maximizing bandwidth utilization.

The DM4618 OLT is a cost-effective, modular solution for providing FTTx services. The DM4618 model has 32 fixed GPON ports and an expansion slot that allows you to equip it with 32 more GPON ports. Supporting a Split ratio of 1:128, it can support up to 8,192 subscribers. As uplinks it has two 100GbE ports (QSFP28) and four 25/10GbE ports on SFP28/SFP+.

The product is fully compliant with the ITU-T G.984 and ITU-T.988 standard. Each GPON link supports 2.488 Gbit/s downstream and 1.244 Gbit/s upstream rates.

The equipment has a command line interface (CLI) accessible through SSHv2, Telnet and RS-232 Console. SNMP v1, v2c and v3 agents are available. In addition, it provides an XML interface based on the NETCONF standard.

Commit and rollback operations (commands and Firmware), the use of user authentication via RADIUS and TACACS, local and remote Syslog are available to facilitate the configuration, management and troubleshooting of the equipment.

Characteristics

• 32 fixed GPON ports
• Expansion to more 32 GPON ports (Line Card)
• 4x 25/10GbE (SFP28)
• 2x 40/100GbE (QSFP28)
• GPON classes B+, C+ and C++
• DHCP option 82
• PPPoE Intermediate Agent
• Redundant, hot-swappable AC or DC power
• Hot-swappable ventilation module

Read More

DM4616. OLT XGS-PON



DM4616

OLT XGS-PON

The XGS-PON (10 Gigabit Symmetrical Passive Optical Network) is a solution for optical access that offers access speeds of up to 10Gbps symmetrical, for broadband applications, Triple Play services (voice, video and data), corporate services, among other solutions. . This technology allows the sharing of optical fiber among customers, reducing costs and maximizing bandwidth utilization. In addition, the DM4616's XGS-PON solution allows coexistence with GPON technology in the same fiber, allowing the gradual migration of services without the need for a high initial investment.

The DM4616 is an OLT in pizzabox format, 1U high, ready for installation in standard 19-inch Racks, containing 4 XGS-PON interfaces and 4 10GbE interfaces, all in SFP+ connectors. It allows a Split Ratio of up to 1:256 per port, with a maximum capacity of up to 1024 XGS-PON clients per OLT. The 10GbE uplinks guarantee wirespeed operation, without blocking traffic in the OLT.

The product is fully compliant with the ITU-T G.9807.1 standard, with each link operating at downstream and upstream rates of 9.953Gbit/s.

The equipment has a command line interface (CLI) accessible through SSHv2, Telnet and RS-232 Console. SNMP v1, v2c and v3 agents are available. Furthermore, it provides an XML interface based on the NETCONF standard.

Commit and rollback operations (commands and Firmware), the use of user authentication via RADIUS and TACACS, local and remote Syslog are available to facilitate configuration, management and troubleshooting of the equipment.

Characteristics

• Compact design
• 4 XGS PON interfaces
• Uplinks on 4 10GbE SFP+ interfaces
• XGS PON Class N2 Interfaces
• Allows coexistence with the GPON signal on the same fiber
• DHCP option 82
• PPPoE Intermediate Agent
• Redundant, hot-swappable AC or DC power

Read More

DM4360. MPLS Access Switch



DM4360

MPLS Access Switch

DM4360 family switches offer high switching capability to meet the increasing demands of access demarcation while providing Metro Ethernet services with performance and reliability.

The DM4360 family is equipped with the modular DmOS network operating system, ensuring robustness and high service availability on a platform supporting a range of L2 / L3 / MPLS features, including support for VLAN operations such as QinQ. and VLAN Translate, LAG / LACP, ring operation via EAPS or ERPS protocol, RSTP support, static and dynamic IP routing protocols using OSPF and BGP. MPLS through LDP functionality is also supported for creating point-to-point (VPWS) and point-to-multipoint (VPLS) services, as well as IP services through L3VPNs. All L2, L3 and MPLS packet forwarding, filtering and QoS policy enforcement are done in HW, ensuring wirespeed operation.

The products offer command line configuration (CLI) accessible via SSHv2, Telnet and RS-232 or USB console port. RADIUS and TACACS features enable the creation of differentiated policies with user authentication and access authorization levels. Local and remote syslog functionality, SNTP clients, DHCP and SNMP server functionality are also available to allow remote management and troubleshooting of the equipment.

The DM4360 family switches are compact 1U high enclosures in a metal enclosure. They feature a universal AC / DC internal power supply with automatic selection and redundancy through an optional external source. Up to two devices can be installed side by side in a 19" rack via an adapter.

Characteristics

• Compact design only 1U high
• 4 ports 1GE (SFP)
• 4 1GE Electric Ports (RJ45)
• VLAN, QinQ, and EAPS / ERPS support for Metro Ethernet Applications
• L2 protocol tunneling for LAN-to-LAN service support
• Static and dynamic routing through OSPF or BGP
• MPLS LDP, VPWS, VPLS, and L3VPN Support
• Integrated full-range AC / DC power supply with automatic selection and optional redundancy via external PSU

Read More

DM4370. 10GE Access Switch



DM4370

10GE Access Switch

The DM4370 Ethernet Switch is a compact, high performance access switch ready for the growing migration of access services towards 10 Gbps. The switch is based on Datacom’s modular network operating system DmOS, with support for a complete L2/L3 feature set including MPLS support, turning it into the perfect fit for high bandwidth and high value enterprise or mobile backhaul access applications. The switch contains 4 optical SFP+ based 10GE interfaces, 4 optical SFP-based 1GE interfaces and 4 additional 1GE electrical interfaces.

The DM4370 switch is 1U height and it can be installed both on desktops or standard 19" rack, with a mechanical adapter holding up to two switches side by side. The product has an integrated  full-range AC/DC power supply module and an additional 12V DC input for optional power redundancy for high availability services and operation.

Characteristics

• Wire Speed with full hardware-based L2, L3 and MPLS forwarding, filtering and QoS
• IEEE802.1Q VLAN with Q-in-Q and VLAN Translate capabilities
• Link Aggregation and LACP
• Support for Ring applications through EAPS or ERPS protocols
• STP/RSTP for loop protection
• L2 Slow Protocol Tunneling (L2CP)
• Up to 8 QoS queues per port
• Static Routing and Dynamic Routing through OSPF and BGP protocols
• Virtual IP redundancy through VRRP protocol
• Operation as Label Edge Router or Label Switch Router through MPLS encapsulation
• LDP for label distribution on MPLS network infrastructure
• Ingress and Egress Rate Limit
• Packet classification by IEEE802.1p, DSCP, Source/Destination Port
• Packet Scheduling through SP and WFQ modes
• ACL Matches by port, MAC address, IP, DSCP, TCP/UDP
• CLI Management interface with Telnet/SSH
• TACACS and RADIUS support for access and management policies administration

Applications

Metro Ethernet Access and Aggregation

Through its SFP based GE/10GE interfaces and the L2/L3 and MPLS functionalities, the DM4370 switch is the best solution for Metro Ethernet access and aggregation applications, offering a reliable and highly available solution for enterprise and residential services. The product supports linear, star and ring topologies, assuring the flexibility needed for different network infrastructure topologies.

Read More

DM4376. 10GE Access Switch



DM4376

10GE Carrier Grade Access SWITCH

The DM4376 switch is a compact, high-performance switch ideal for Metro Ethernet access networks and high-performance corporate networks that demand maximum synchronization precision and stability.

Based on the DmOS network operating system, the DM4376 switches ensure robustness and high service availability with support for a range of L2, L3, MPLS, and timing functionalities. Highlights include VLAN operations such as QinQ and VLAN Translate, LAG/LACP, ring operation via EAPS or ERPS protocols, support for RSTP, static and dynamic IP routing through OSPF and BGP, access control policy filters (ACL), QoS functionalities, and more. The switch also supports MPLS transport and aggregation features via LDP for point-to-point (VPWS) and point-to-multipoint (VPLS) services, as well as IP services via L3VPNs. All L2, L3, and MPLS packet forwarding, filtering, and QoS policies are handled in hardware, ensuring wirespeed operation.

With full support for major IEEE 1588v2 synchronization profiles, it operates as a Transparent Clock, Boundary Clock, and Ordinary Clock, while also supporting Synchronous Ethernet to ensure perfect signal alignment throughout the network.

Configuration is offered through a command-line interface (CLI) accessible via SSHv2, Telnet, and RS-232 or USB console ports. RADIUS and TACACS functionalities enable the creation of user authentication and access authorization policies. Local and remote Syslog features, NTP clients, and SNMP are also available to enable remote equipment management and troubleshooting.

With power redundancy and hot-swap slots for AC/DC power supplies, the DM4376 is prepared for environments requiring continuous operation, offering reliability and flexibility.

Characteristics

• Wire Speed with full hardware-based L2, L3 and MPLS forwarding, filtering and QoS
• 2 x 10/100/1000Base-T interfaces on RJ-45 connectors
• 4 x 1000Base-X interfaces on SFP connectors
• 4 1000Base-X / 10GBase-X interfaces on SFP+ connectors
• IEEE802.1Q VLAN with Q-in-Q and VLAN Translate capabilities
• Link Aggregation and LACP
• Support for Ring applications through EAPS or ERPS protocols
• STP/RSTP for loop protection
• L2 Slow Protocol Tunneling (L2CP)
• Up to 8 QoS queues per port
• Static Routing and Dynamic Routing through OSPF and BGP protocols
• Virtual IP redundancy through VRRP protocol
• Operation as Label Edge Router or Label Switch Router through MPLS encapsulation
• LDP for label distribution on MPLS network infrastructure
• Ingress and Egress Rate Limit
• Packet classification by IEEE802.1p, DSCP, Source/Destination Port
• Packet Scheduling through SP and WFQ modes
• ACL Matches by port, MAC address, IP, DSCP, TCP/UDP
• IEEE1588v2: Transparent clock, Boundary clock and Ordinary clock
• SyncE
• CLI Management interface with Telnet/SSH
• TACACS and RADIUS support for access and management policies administration

Read More
